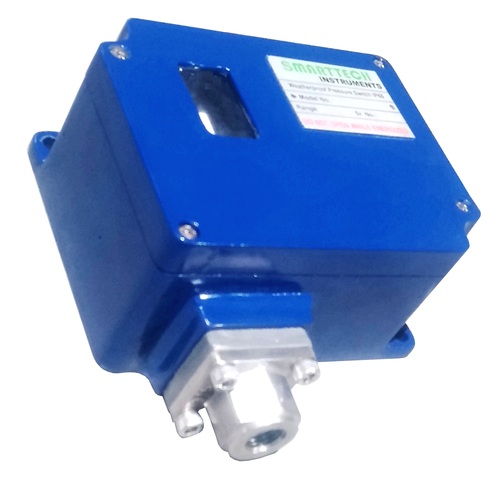

Weatherproof Pressure Switch

We hold expertise in catering to the several needs of the customers by providing them with a safe Process High Proof High Range Pressure Switch at most affordable prices. This is manufactured using sophisticated technology and quality assured raw materials, at par with the set quality standards and norms. Thus, our offered Process High Proof High Range Pressure Switch is widely applauded for its dependability, long service life and unique quality. In addition to this, our professionals give extra care in the packaging of the product in order to protect it from any damage during transit.

Technical specifications are as follows:

• Range: As required
• Sensing Elements: Diaphragm/Piston SS316L
• Wetted Part: SS 316
• Enclosure: Weather proof
• Protection: IP65
• Enclosure: Die cast aluminum
• Micro switch: SPDT / 2SPDT Contact
• Electrical rating: 5A/15A250 VAC ,
• Repeatability: + - 1 % of FS
• Scale accuracy: +-3% of FS
• Differential: Fixed/Adjustable type
• Process Connection: 1/4" BSP(F)
• Cable entry: 3/4" ET
• Mounting: Wall/Pipe
