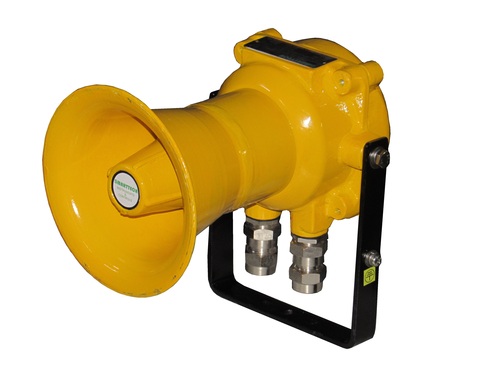

Audio Visual Signaling Device

Audio Visual Signaling Device

Product Details:

X

Price And Quantity

  • 4500 INR
  • 5 Number
  • 4500.00 - 7000.00 INR

Product Specifications

  • Other

Trade Information

  • Cash Against Delivery (CAD)
  • 100 Number Per Month
  • No
  • All India
  • Weatherproof Certificates and Factory Test Reports

Product Description

Hooter: Electrical Rating: 230V VAC / 24V DC

Sound output: SPL at 1K Hz 110dB/10W/1m

Input Power: 10W RMS/ 13W Impedance: 8 Ohms.

Frequency Response: 300-5000 Hz

Electrical Rating: 230V AC /24V DC



Flashing Light:

Navigational Blinking Illumination light

Flux min 1200 cd

Power Supply:230V /24V DC

LED: 48 Nos. High intense led used in the circuit.

Light Intensity: 600 to 630nM

Viewing Angle: 360 Deg.

Operating temperature range: Up to 70 Deg. C

Sealed water-proof unit conforming to IP66 standards

Casing made of Aluminum Housing painted with UV paint for atmospheric protection

UV stabilized Red polycarbonate Cap to protect the LEDs

Fire retardant

Withstands impact of up to 2J


Cable Entry: 1no M20 X 1.5P With Polyamide cable gland with 500MM cable with Terminal

  Earthing: 1 no inside & 2nos. External

  Terminal: 2 Way terminal block

  Mounting: Base Mounting / Wall Mount

  Color: RAL 7035
